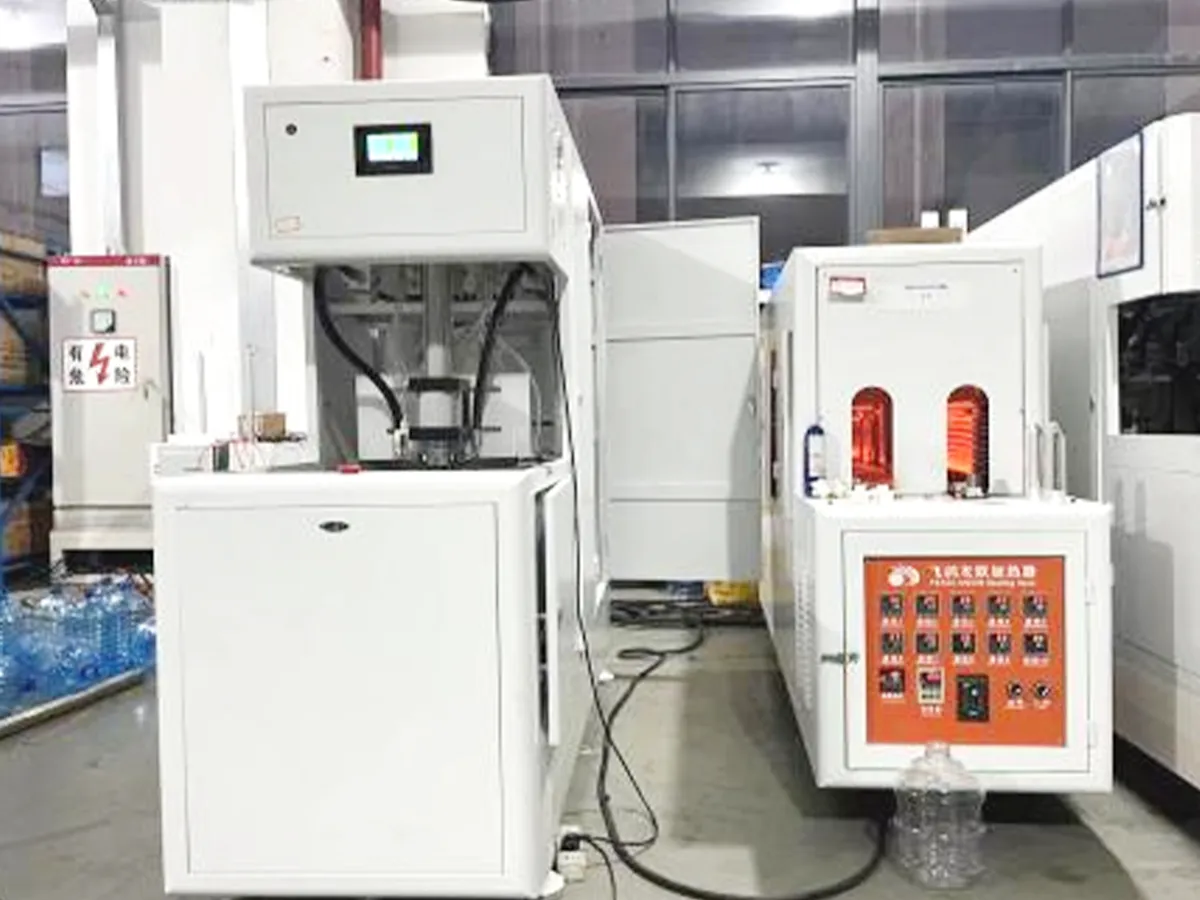

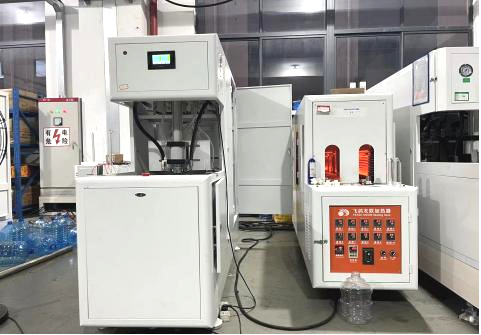

300–400 BPH 10L Semi-Automatic Single-Cavity Blow Molding Machine

    300–400 BPH 10L Semi-Automatic Single-Cavity Blow Molding Machine

    Our 300–400 BPH 10L Semi-Automatic Single-Cavity Blow Molding Machine is designed for producing large-capacity PET plastic bottles with consistent shape and reliable operation. The single-cavity structure offers practical production control and easy operation. It is suitable for water, beverage, and other packaging applications requiring 10L PET containers in commercial production environments.
  • ibahagi：
    • Makipag-ugnayan sa amin Online na Pagtatanong
  • Mail：trade@yhenv.com
    Whatsapp：8618353281502

Main parameters:

Molding group specifications

Clamping force

28000KG

Mold Stroke

280mm

lever travel

450mm

Bottle spacing

90-120mm

Number of mold cavities

1 cavity

Number of embryos

96

Theoretical output


300-400pcs

Electricity Specifications

Heating power

28*0.5kw

Number of lamp layers

10

Air compressor specifications

Operating pressure

7-9KG

Blow molding pressure

20-30 BAR

chiller specifications

Operating pressure

2-4BAR

Temperature range

10-12 degrees

Main unit specifications

size

1950*650*1750

weight

1250KG

Oven Specifications

size

2170*670*1600

weight

400KG


1

Semi-automatic blow molding machine oven 380V 50HZ

FG10L

2

Semi-automatic mold

 One out of 10L

6

Filter oil-water separator

2.4 m³/min 3.0 MPa

7

Refrigerated dryer

2.4 m³/min 3.0 MPa

8

gas tank

0.6m³/30kg

9

380V 50HZ high-pressure air compressor

2.0 m³/min 3.0 MPa

10

3HP air-cooled chiller

3HP

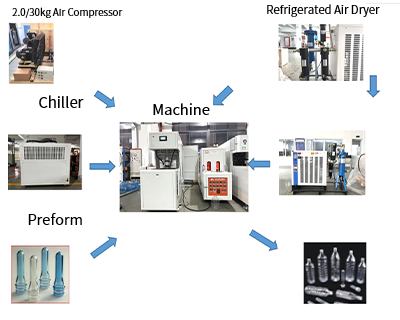

Process Flow Connection Diagram
